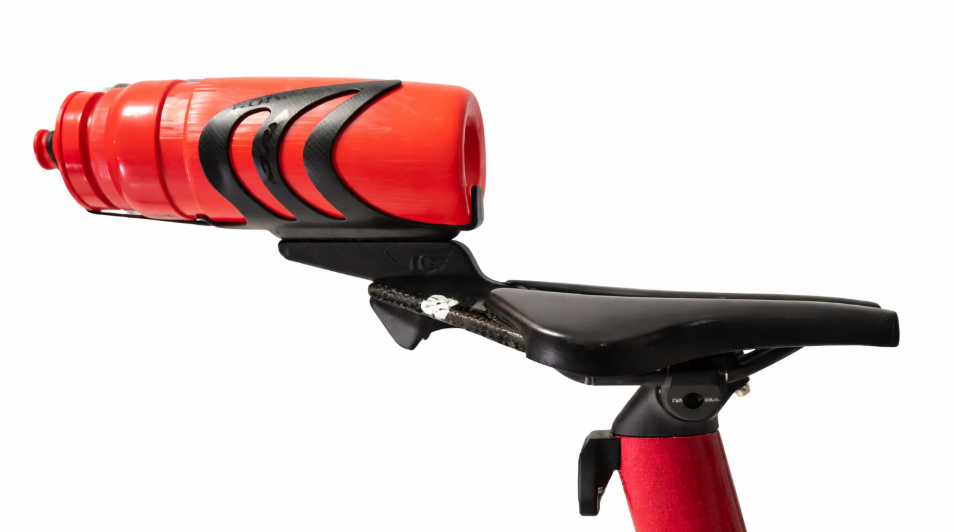

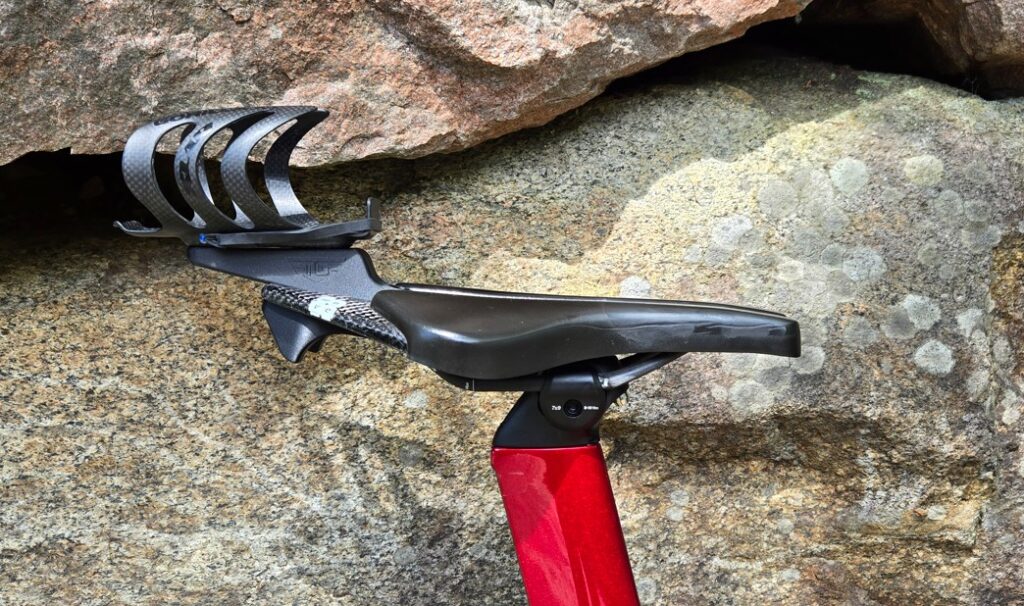

Wove SINGLE Bottle BTS hydration Bracket
Updated 2026-06-22
Product Info: https://triguertin.com/single-wove-bts/
Purchase: Contact me
Saddle Compatibility:
- Wove TT V8 v1 (2023-2025)
- Wove TT V8 v2 (2025+)
- Wove M8
Important Notes:
- You need a T25 Torx bit/wrench and 4mm Allen Key to secure the provided titanium screws.
- Do not overtighten the screws – Max Torque 2 N.m. Use thread locker to keep things in place and tight.
Tighten the back screw first, then the front one. When you feel it starts tightening (sudden increase in resistance), add 1/2 to 3/4 turns (approx. 1.7-2.0 N.m) - Bracket is meant to be used with the same transition hook developed for the dual side-by-side kit. The screws come at a specific angle to accommodate that (transition hook is common).
If you want secure the screws in something else (i.e. nuts or Wove’s dog bone) contact me and I can offer a custom version of the bracket with screws coming down straight. - Thread Locker: to prevent the screws coming loose due to road vibrations, it is strongly recommended to use a removable (non-permanent) thread locker compound (like “blue Loctite 242”, Permatex Blue, etc).
This is valid for any BTA/BTS setup by the way!
You can find this at your local hardware store (considered hazardous material for shipping, I could not include with the kit).
Examples:

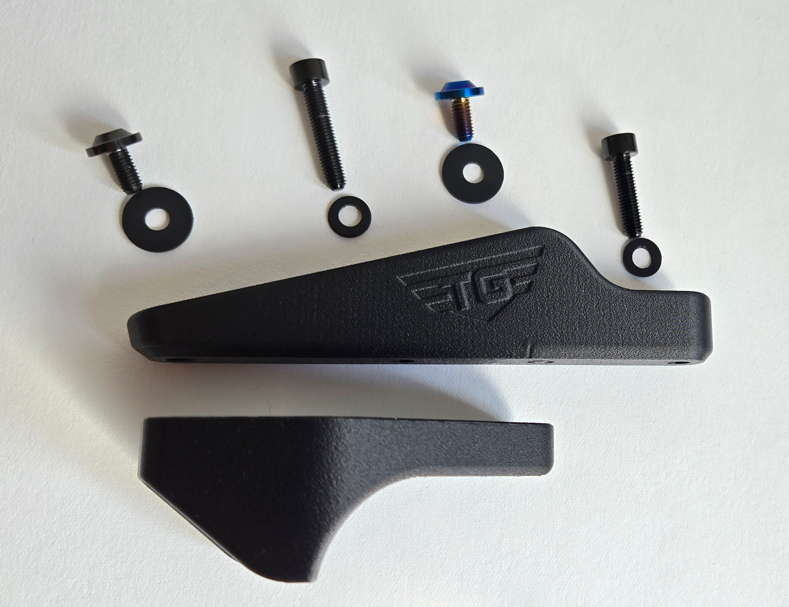

Kit Components & Installation
Nylon (plastic) washers are provided. The 15 mm OD ones are for the cage screws, the 10 mm OD ones are for the bracket screws.
Bracket screws (black) use a 4mm Allen wrench to secure the bracket through the saddle to the transition hook.
Longer 25 mm screw goes on the far rear, shorter 20mm screw is for the front of the bracket
Don’t forget to apply Blue Thread Locker on the threads before assembly, and do not tighten too tight!
Then you can secure the bottle cage using the “disc shaped head” screws (blue) with a T25 Torx bit. The nylon washers are optional but helps protect your cage. Use thread locker as well and do not tighten too tight.
Tilt adjustment: there is none. If a small adjustment is needed, you can try with washers in front or back but otherwise if the angle of the cage is not good, contact me and let me know what you would need. I can make a special bracket for you and we’ll figure something fair.

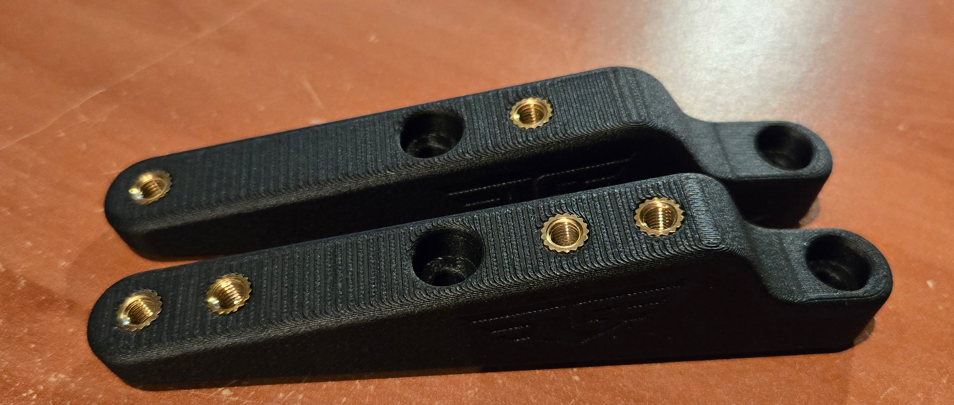

Fore-aft adjustment: none built in. [Update June 22 2026] Version “D” of the bracket now has 2 sets of cage mounting threaded holes, with the 2nd set closer to the rider (new version is the bottom one):

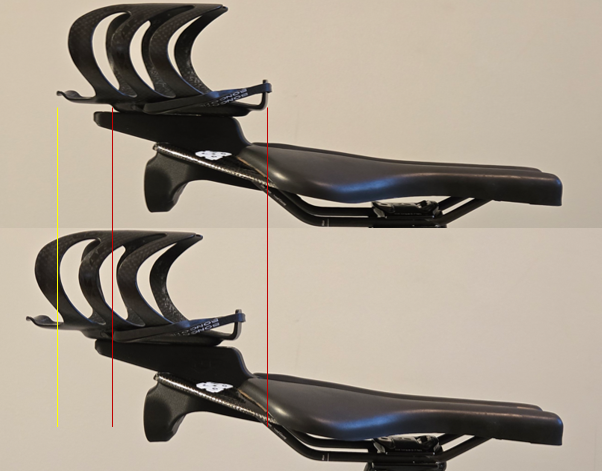

The picture below shows the level of fore-aft adjustment possible, natively, with the new version:

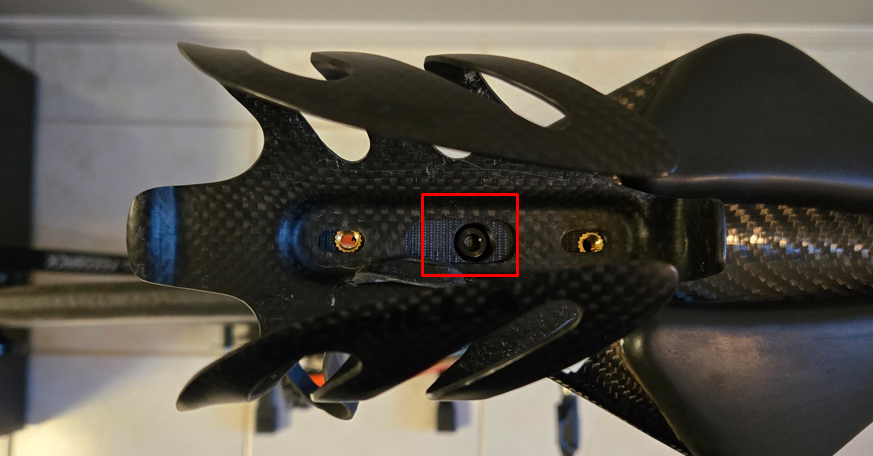

If using the front mounting holes (or the most forward position of the back holes), access to the rear bracket mounting screw is possible with a XLAB Gorilla cage (and maybe other models too):
If you need more adjustment, you can easily add a Wolf Tooth BRAD-2 cage re-locator bracket (Amazon link) to provide this functionality. Or contact me to see if I can make something custom for you.
VERY IMPORTANT (If using the Cage Relocation Bracket)

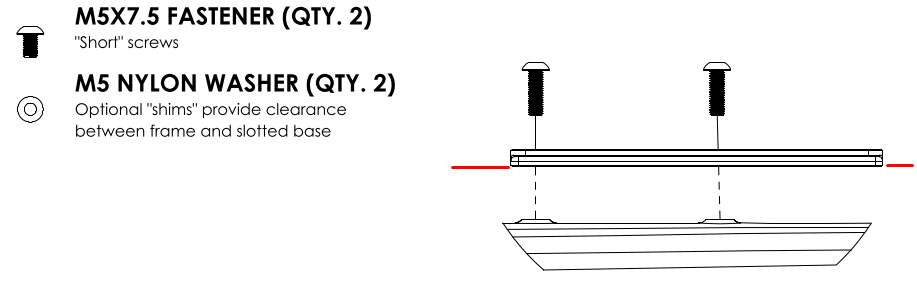

When securing the bottle cage to the bracket, very short screws (and washers as shims as needed) must be used to make sure the cage screws are not sticking out past the bottom of the bracket (shown by the ride lines below in the side view) -> otherwise they will interfere and damage the 3D printed bracket!!
The Wolf Tooth bracket comes with short screws (7.5 mm) and washers.
Below, a short video shows the fore-aft adjustment the Wolf Tooth B-RAD 2 gives (towards front – bracket can be installed the other direction too)
Any questions or issues, do not hesitate to reach out.
Enjoy!
